£202.99

Out of stock

SKU: AL539 Category:

Description

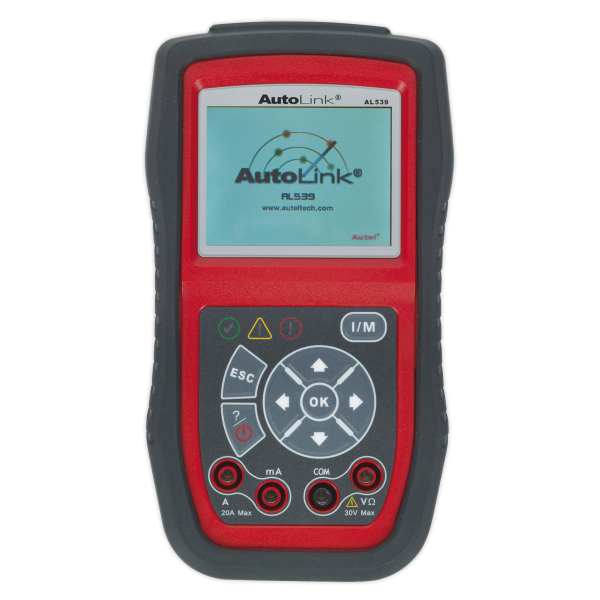

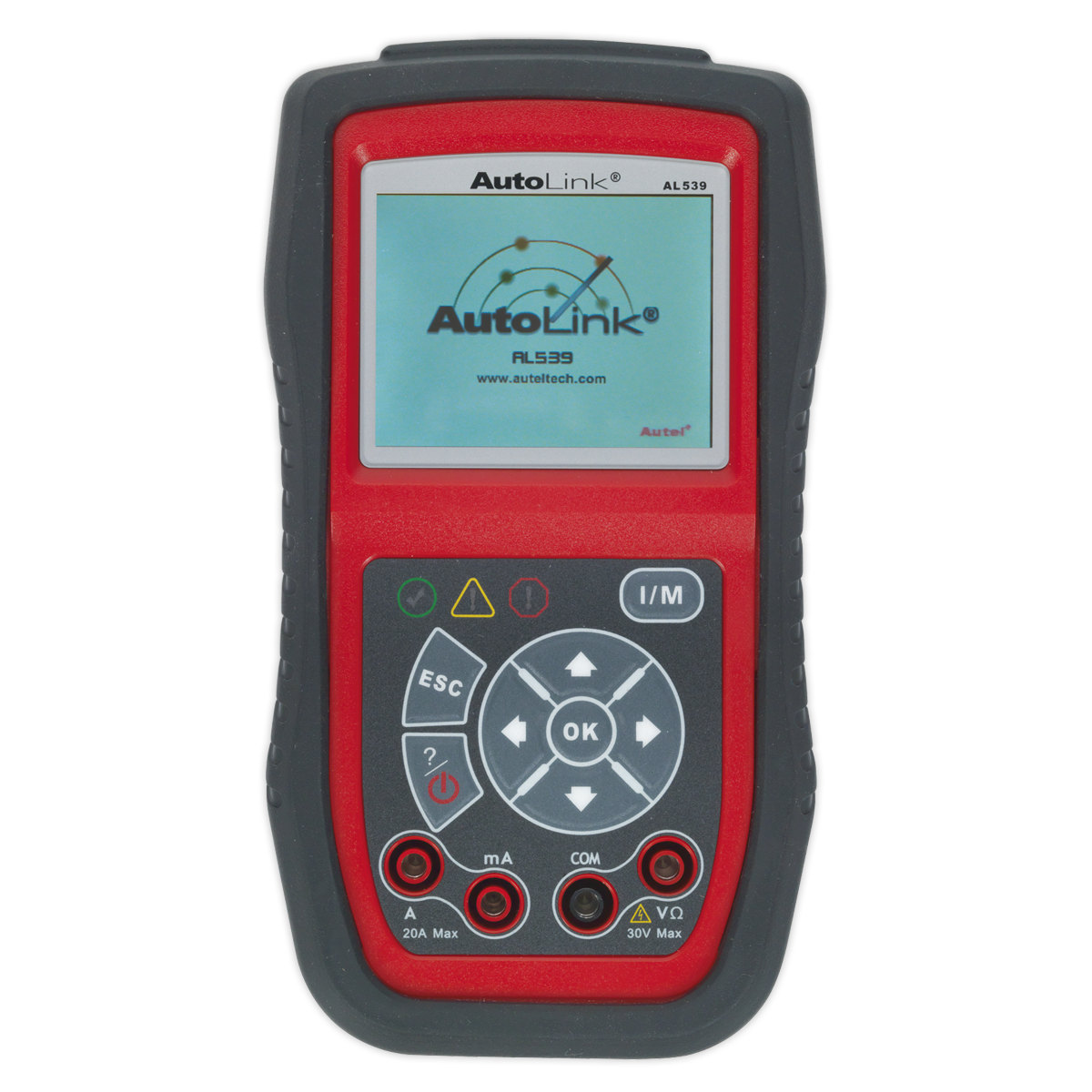

• The Autel AL539 ultimate automotive analyser that combines a multimeter, scope, starter test and EOBD code reader.
• Fast and easy-access to any vehicle’s EOBD diagnostic codes, establishing cause of illuminated engine check light (MIL).
• Built-in data library with lookup functions.
• Clear, concise DTC generic definitions displayed.
• CAN Enabled tool retrieves generic P0, P2 and P3 and U0 codes for engine emissions and manufacturer specific P1, P3 and U1 codes.
• Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze-frame data.
• Live display of O2 sensor data which can be stored and played back.
• Updateable via web and will link with PC.
• Patented, One-Click I/M Readiness button to eliminate drive cycle guesswork.
• Supports new extended sensor list (SAE J1979 2007), troubleshooter code tips and repair information to identify root cause of the DTC, so saving time.
• Internal battery back-up for off-vehicle data review/analysis.

Model No: AL539
Brand: Autel
Nett Weight: 0.86kg
Application(s): All Petrol 2001on and Diesel 2004on OBDII / EOBD compliant vehicles
EOBD Code Reader Features:
Function Description: Function Application:
Works with all (Petrol 2001 onwards and Diesel 2004) OBDII / EOBD compliant vehicles: Yes
Scans for Diagnostic Trouble Codes (DTC) - The cause of the Engine and Transmission 'Malfunction Indicator Light' (MIL): Yes
Scans for pending DTCs: Yes
Retrieves generic (P0, P2, P3 & U10) and manufacturer specific (P1, P3 & U1) DTCs: Yes
Turns off MIL light, clears DTCs and resets monitors: Yes
Displays DTC definitions on screen: Yes
View freeze-frame data: Yes
Displays monitor and I/M readiness status (emissions): Yes
Patented One-Click I/M readiness button (emissions): Yes
Retrieves vehicle information (VIN, CID & CVN): Yes
Supports CAN and other current EOBD Protocols: Yes
Supports the new extended sensor list (SAE J1979 - 2007): Yes
Reads live ECU/PCM data stream: Yes
Displays live O2 sensor data: Yes
Graphing function for live data: Yes
Read, store and playback live sensor data: Yes
Performs 'modules present' test: Yes
Print out data via PC - Compatibility; Vista, XP, Win7/8/10: Yes
Update software via the internet - Compatibility; Vista, XP, Win7/8/10: Yes
Built-in EOBD library lookup: Yes
Troubleshooter code tips and repair information guide: Yes
Multimeter (Voltage & Resistance): Yes
Multimeter (Amps): Yes
Scope with Max., Min., Frequency, Duty Cycle: Yes
12V Charging and battery starter test: Yes
Battery test ranges: CCA; DIN, SAE, IEC, EN
