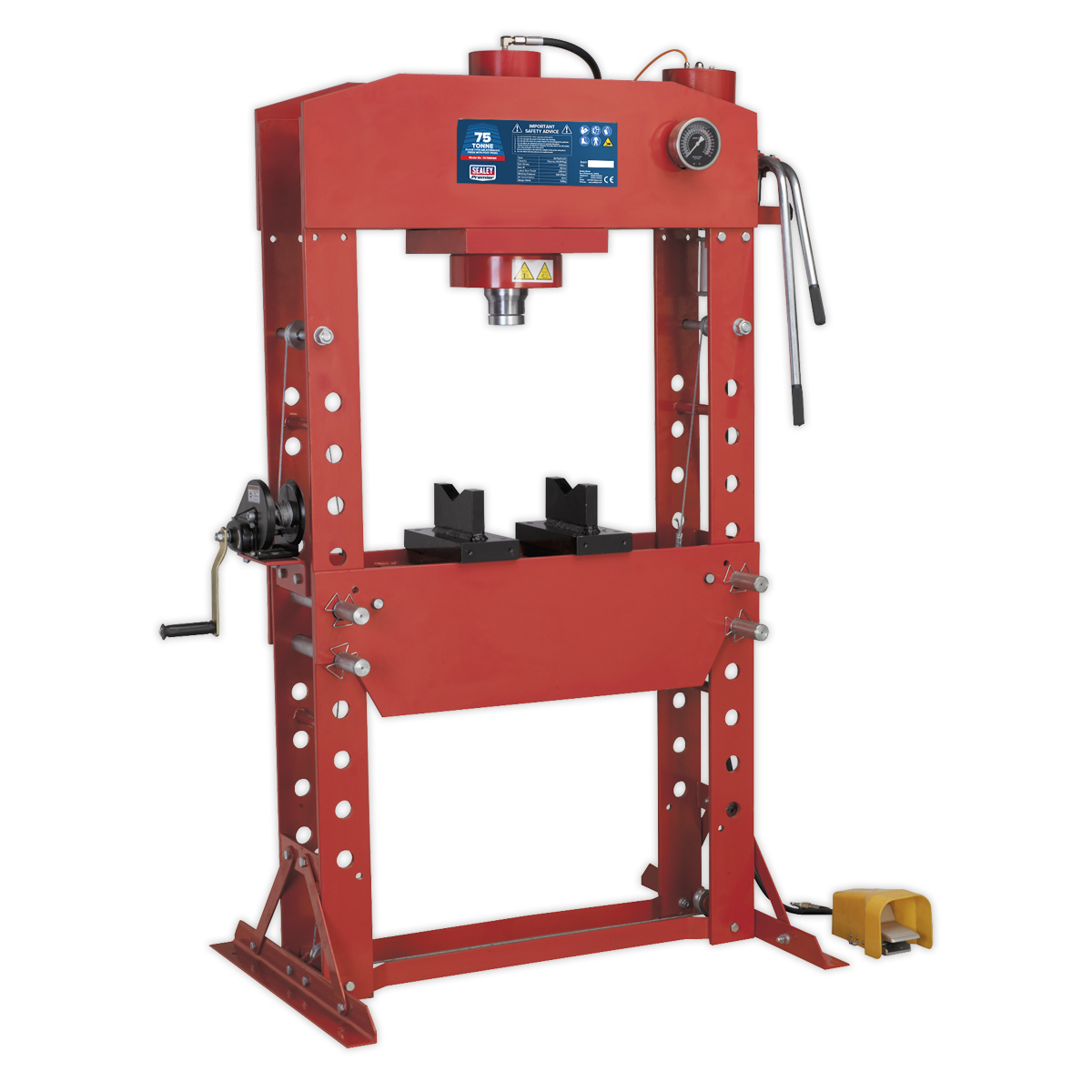

Air/Hydraulic Press 75tonne Floor Type with Foot Pedal - Huttie

24 Hour Call-Outs

365 days a year

Our Work is Guaranteed

Only satisfied when you are

Reliable & Professional Workforce

Fully accredited and experienced team

Rapid Response

Helping you find a quick solution

£4,481.99

25 in stock

SKU: YK759FAH Category:

Description

• Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model No: YK759FAH
Air Consumption: 7cfm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 75 Tonne
Gauge Included: Yes
Lateral Ram Travel: 260mm
Maximum Height - Ram to Table: 884mm
Minimum Height - Ram to Table: 170mm
Nett Weight: 451kg
Optional Accessories: YKSG75 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1925mm
Overall Width: 1560mm
Ram Diameter: Ø93mm
Ram Stroke: 250mm
Table Aperture: 251mm
Type: Air/Hydraulic
Working Table Depth: 279mm
Working Table Width: 800mm
