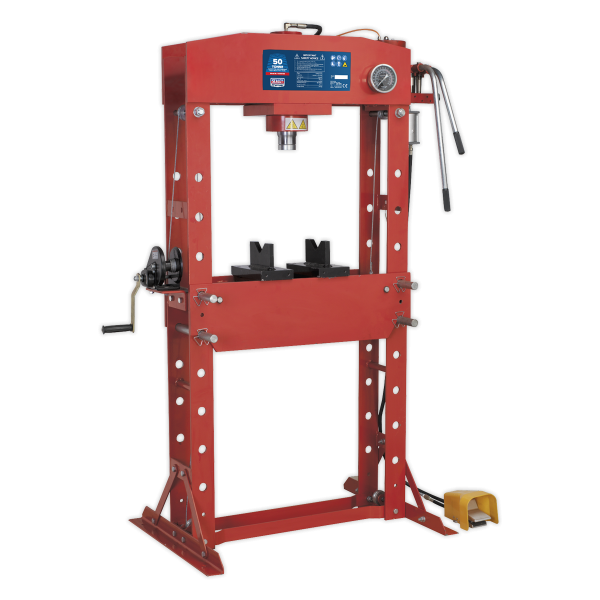

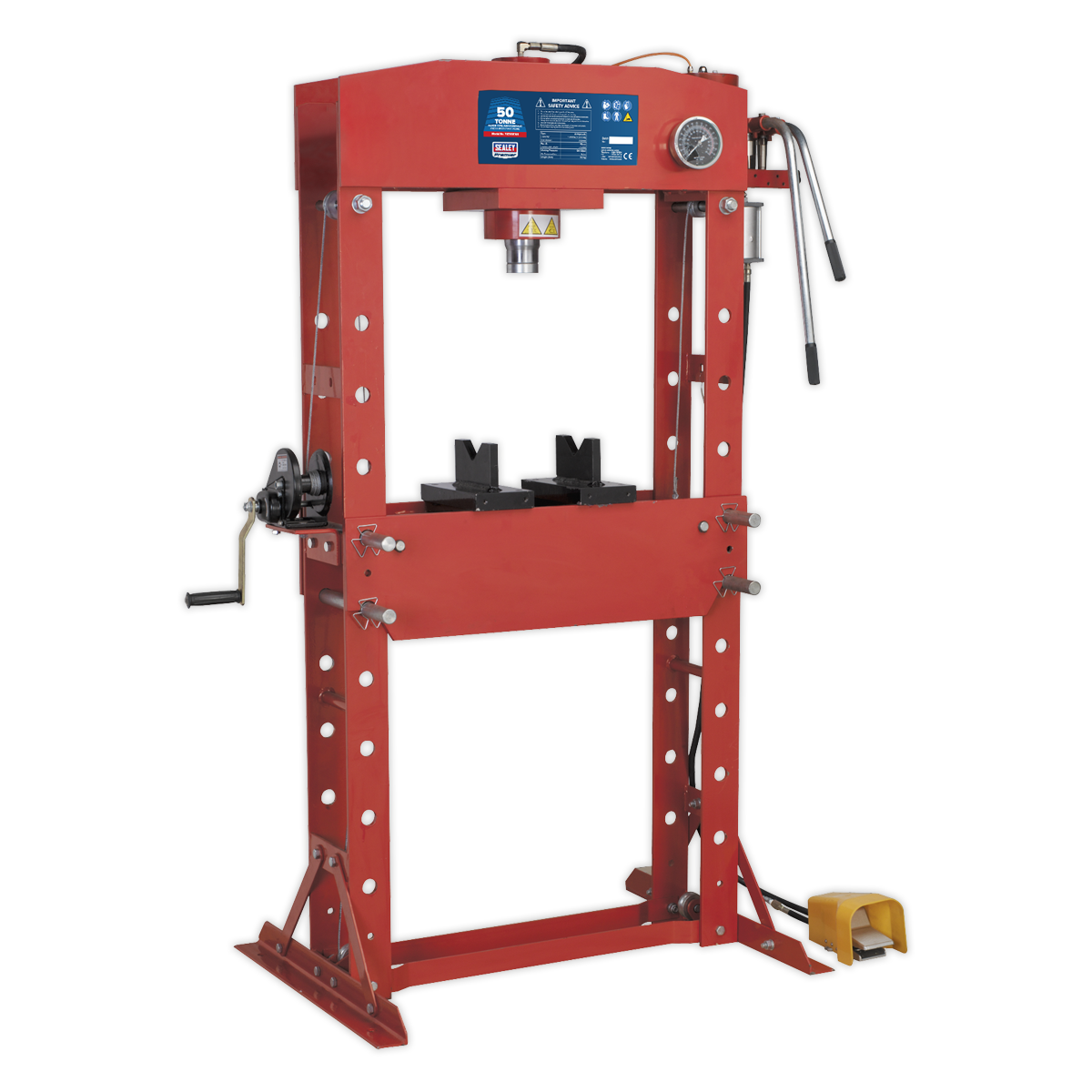

Air/Hydraulic Press 50tonne Floor Type with Foot Pedal - Huttie
Residential Commercial
Cambridge 01223 292 295
London 0207 294 7747

24 Hour Call-Outs

365 days a year

Our Work is Guaranteed

Only satisfied when you are

Reliable & Professional Workforce

Fully accredited and experienced team

Rapid Response

Helping you find a quick solution

£3,056.99

25 in stock

SKU: YK509FAH Category:

Description

• Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with table winch and flat pressing plate/V-blocks.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model No: YK509FAH
Air Consumption: 7cfm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 50 Tonne
Gauge Included: Yes
Lateral Ram Travel: 245mm
Maximum Height - Ram to Table: 1047mm
Minimum Height - Ram to Table: 67mm
Nett Weight: 302.5kg
Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1877mm
Overall Width: 1335mm
Ram Diameter: Ø75mm
Ram Stroke: 200mm
Table Aperture: 235mm
Type: Air/Hydraulic
Working Table Depth: 259mm
Working Table Width: 910mm
