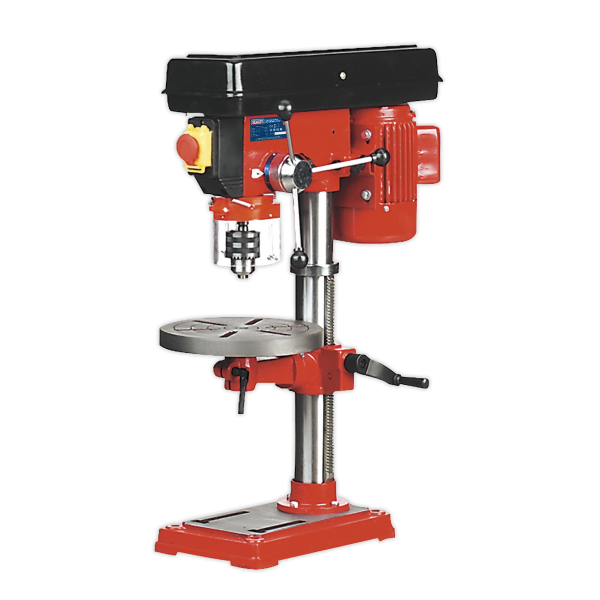

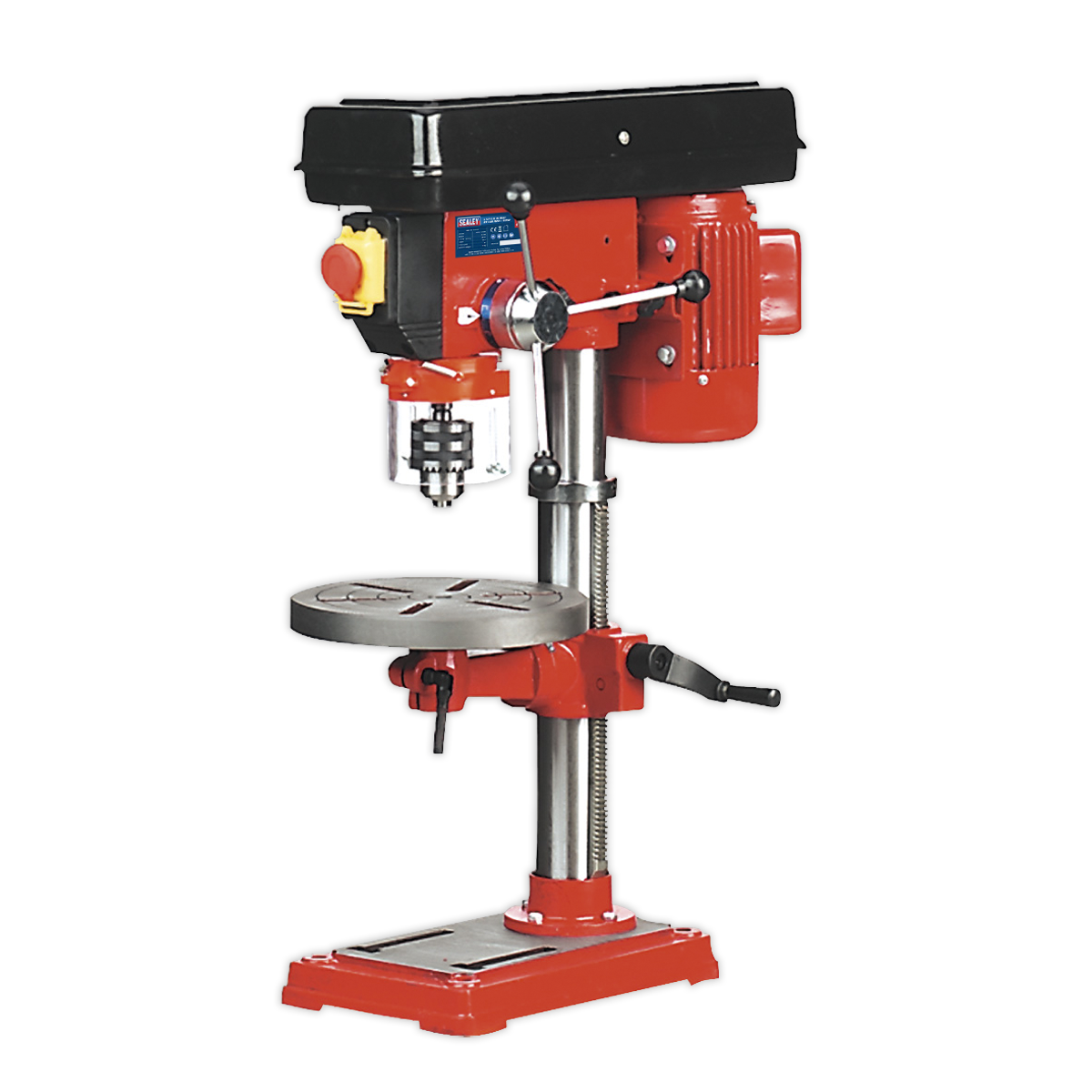

Pillar Drill Bench 5-Speed 750mm Height 370W/230V - Huttie

24 Hour Call-Outs

365 days a year

Our Work is Guaranteed

Only satisfied when you are

Reliable & Professional Workforce

Fully accredited and experienced team

Rapid Response

Helping you find a quick solution


25 in stock

SKU: GDM50B Category:


• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.

Model No: GDM50B
Base Size: 345 x 215mm
Brand: Sealey
Collar Diameter: Ø55mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 450mm
Maximum Distance Spindle to Table: 300mm
Motor Power (Start): 220W(370W)
Nett Weight: 32kg
Number of Speeds: 5
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 750mm
Speed Range: 460-2890rpm
Spindle Centre to Column: 127mm
Spindle Nose Taper: MT2
Spindle Travel: 60mm
Supply: 230V
Swing: 254mm
Working Base Surface Size: 160 x 180mm
Working Table Surface Size: Ø248mm
