£950.99

25 in stock

SKU: PH30 Category:

Description

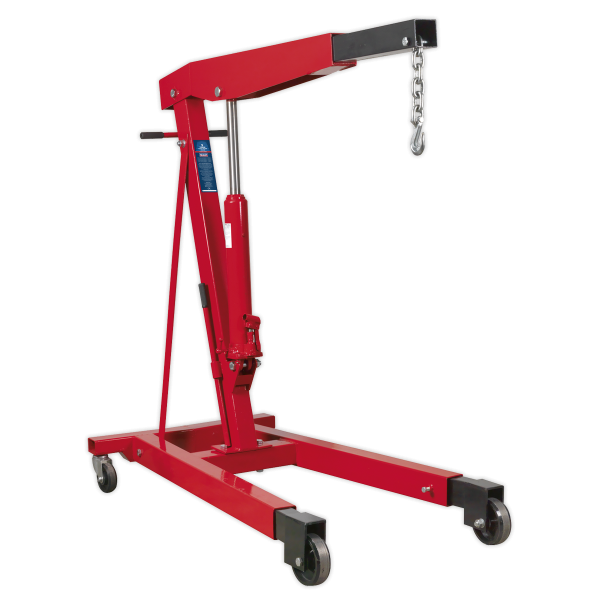

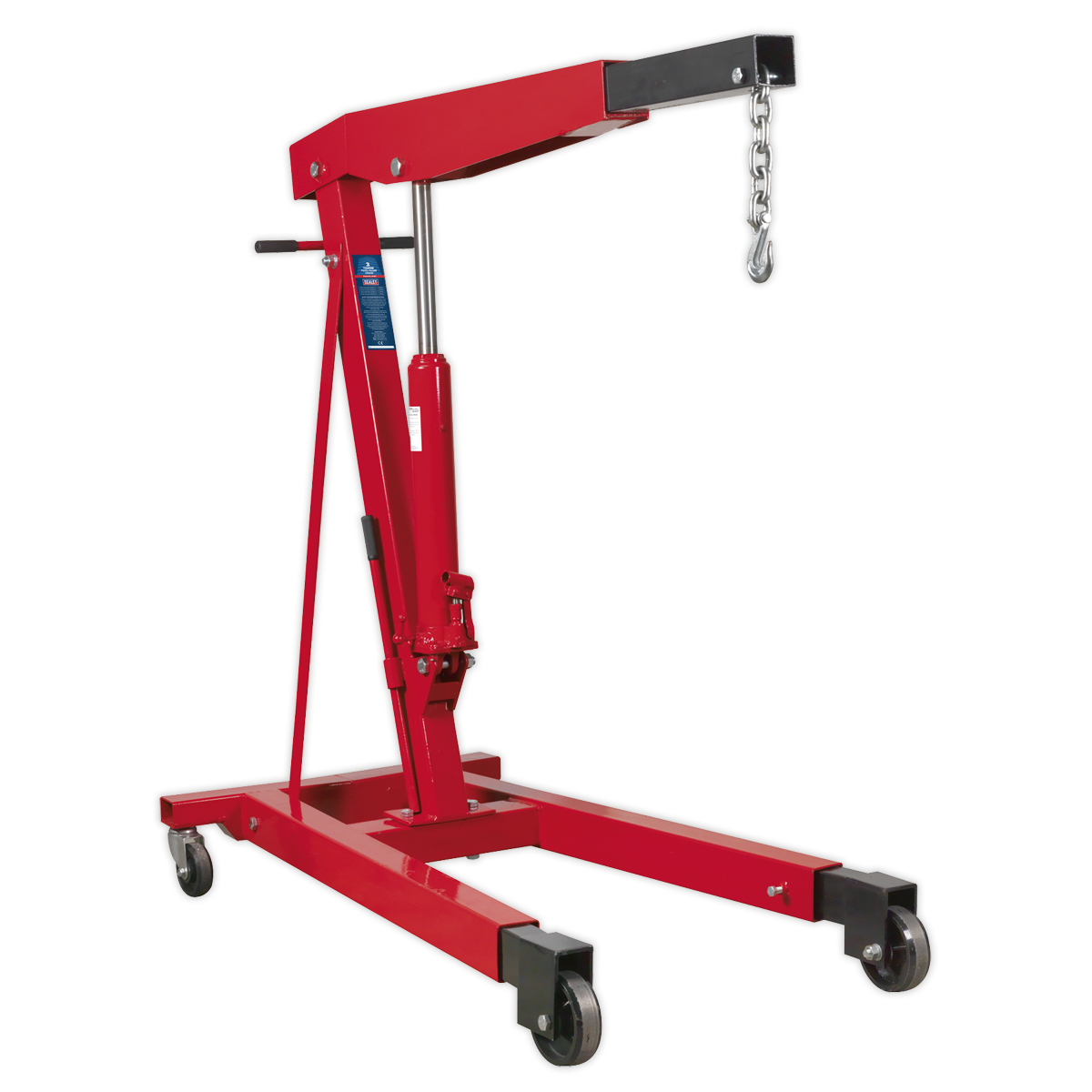

• Lifts 3000kg at 1200mm jib extension.
• Heavy-duty castors.
• Perfect for heavy commercial, industrial and workshop use.
• Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
• Pump access from side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model No: PH30
Brand: Sealey
Height Jib Down: 1610mm
Height Legs Folded: n/a
Height of Frame: 195mm
Length of Jib Position 1: 1200mm
Length of Jib Position 2: 1400mm
Length of Jib Position 3: 1610mm
Length of Jib Position 4: 1820mm
Length of Jib Position 5: n/a
Lifting Capacity in Position 1: 3000kg
Lifting Capacity in Position 2: 2000kg
Lifting Capacity in Position 3: 1500kg
Lifting Capacity in Position 4: 1000kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1880mm
Max. Lift Ht at Jib Position 2: 1970mm
Max. Lift Ht at Jib Position 3: 2010mm
Max. Lift Ht at Jib Position 4: 2220mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 155kg
Note: *Legs Extended
Rear Width: 780mm
Width Front Frame: 855mm*
Width Inside Front Frame: 700mm*
